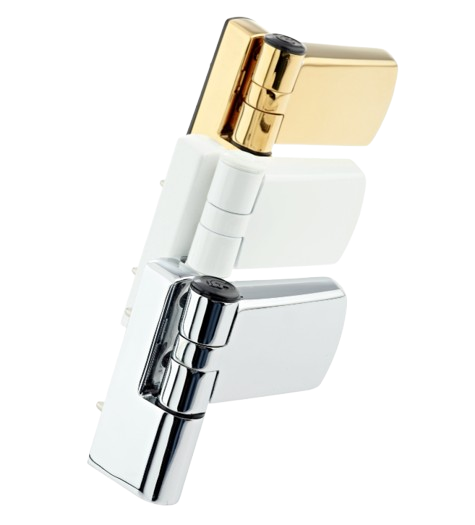

The Patriot Plus door hinge offers a slim, unobtrusive appearance with an improved clearance for plaster line and finishing. Easy, accurate and independent 3D adjustment means no visible gap during height adjustment, giving better aesthetics and stability. It is supplied pre-assembled and ready to fit, dramatically speeding up the fitting process.
Features:
Pre-assembled ready to fit
Slim and unobtrusive appearance
PAS 24 accredited as part of a door assembly
Fitter and installer friendly
Patented anti-lift feature
Additional location pins to reduce twist
Full 3D adjustment
Vertical adjustment with no gap created between flag and base
Non handed
Slim frame plate
Available in White, Black, Brown Oak (all UV stabilised), Polished Chrome, PVD Gold and Satin Silver (Other finishes and colours available upon request)
No visible fixings
Specification:
Zinc alloy
Stainless Steel - Grade 430
Plastic - GF Nylon, UV stabilised ABS and Acetal
Corrosion tested to BS EN 1670: Painted finishes Grade 5 (480hrs. NSST), plated finishes Grade 4 (240hrs. NSST)
Conforms to EN 1191 - tested to 100,000 cycles
Can achieve PAS 24 as part of a specific door assembly
